The Essential Role of Flanged Expansion Joints in Providing Stress Relief for Piping Systems

Industrial and commercial piping systems require top priority status for performance alongside durability together with safety measures. Current systems containing complex structures and facing severe conditions need dependable components to function reliably.

Modern piping infrastructure utilizes flanged expansion joints as unheralded critical components. Within the bigger picture these apparently small elements serve a crucial function to lengthen system life while reducing repair expenses while protecting the system from unforecasted breakdowns.

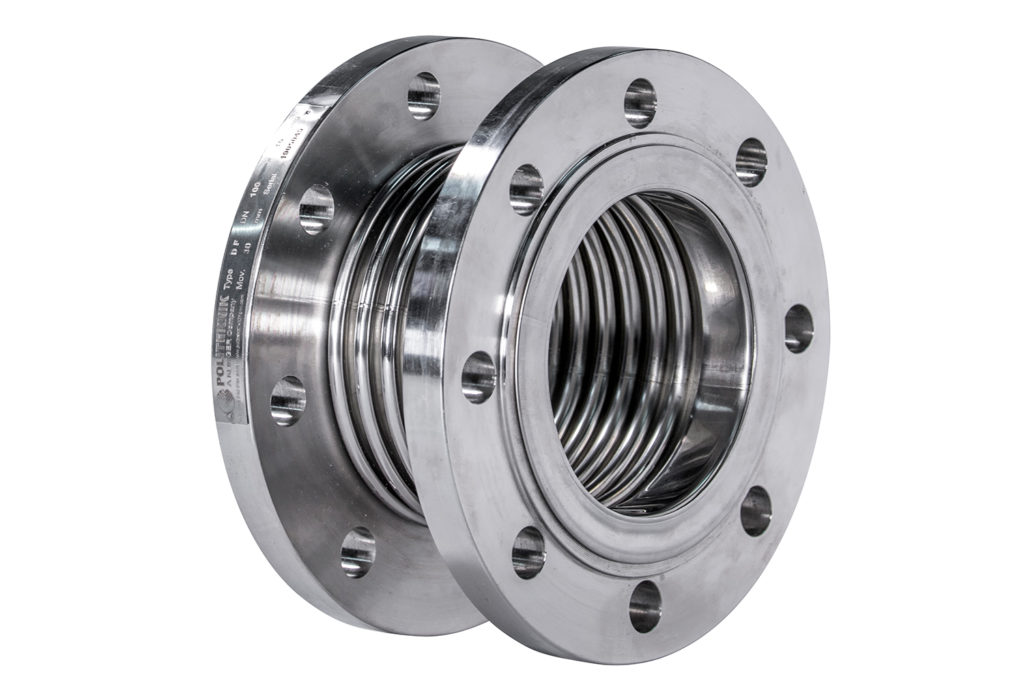

What Are Flanged Expansion Joints?

A flanged expansion joint functions as a flexible connection between piping system components for absorbing the movements caused by thermal expansion as well as piping vibrations and misalignment.

The bellows component made from rubber metal or fluoroplastics forms the joints which adapt their size through pipe movements. The flanged ends enable effortless equipment installation while securing the piping section and equipment attachments.

Expansion joints with flanges enable pipelines to accept axial as well as lateral and angular movement because of their flexible design. Such flexibility helps avoid damage that results from changes in temperature or mechanical vibrations and foundation movements. The ptfe expansion joints function as shock-absorbing devices which protect your piping setup.

Stress Relief: The Hidden Challenge in Piping Systems

Pipes function under persistent stress because various following factors continue to impact them:

• Any fluid or gas flowing through pipes at different temperatures causes the material to expand before it eventually contracts. Such flow movement without proper compensation measures can result in disastrous pipeline cracks and joint failures and explosive bursts.
• Equipment generators of vibration produce stress which causes pipe connections and supports to wear throughout time.
• Perfect alignment mainly remains elusively difficult to achieve during the installation process. Piezometers can generate excessive compression in joints if their placement varies slightly.
• Water hammer events and other abrupt flow or pressure fluctuations produce sudden stress that acts on pipe walls together with their joints.

The utilization of flanged expansion joints takes place now. The movement capabilities along with vibration-assimilating properties of these joints aid in minimizing mechanical stress that could harm system structural performance.

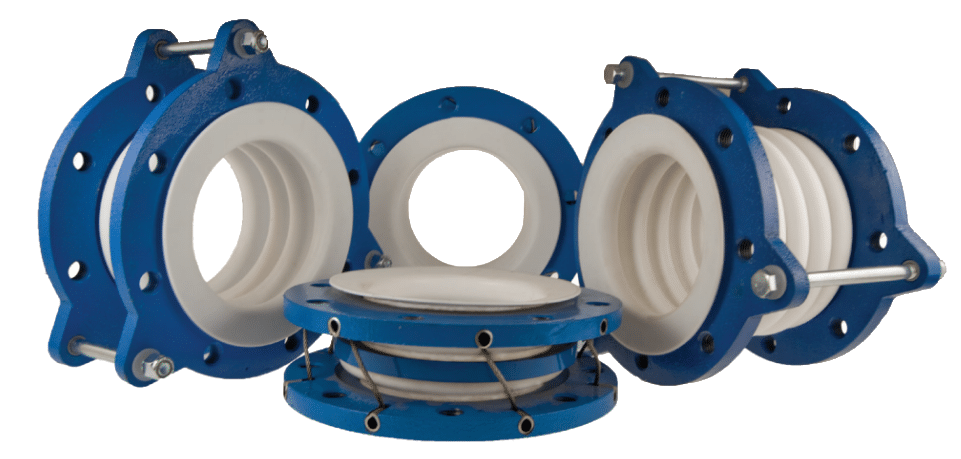

Teflon Expansion Joints: Branding with Performance

PTFE joints also have another name as Teflon expansion joints because Teflon serves as the registered trademark for polytetrafluoroethylene. The term Teflon expansion joints carries a specific meaning within industrial sectors because it signifies enhanced manufacturing standards and quality control measures. Teflon expansion joints usually receive additional layers of rubber or metal rings on their outer surface for resistance to internal pressure and PTFE chemical stability. When used in flanged designs, these expansion joints offer optimal versatility because they fit well into diverse industrial pipe systems.
