In the fast-evolving world of industrial automation, choosing the right Programmable Logic Controller (PLC) is critical to system performance, reliability, and scalability. Among the many options available, the from the GE Fanuc Series 90-30 family stands out as a versatile, compact, and proven single-slot CPU module. But is it the right choice for your specific automation needs?
This article explores the features, applications, pros, and cons of the IC693CPU363 to help you make an informed decision.
What Is the Single Slot CPU Module?

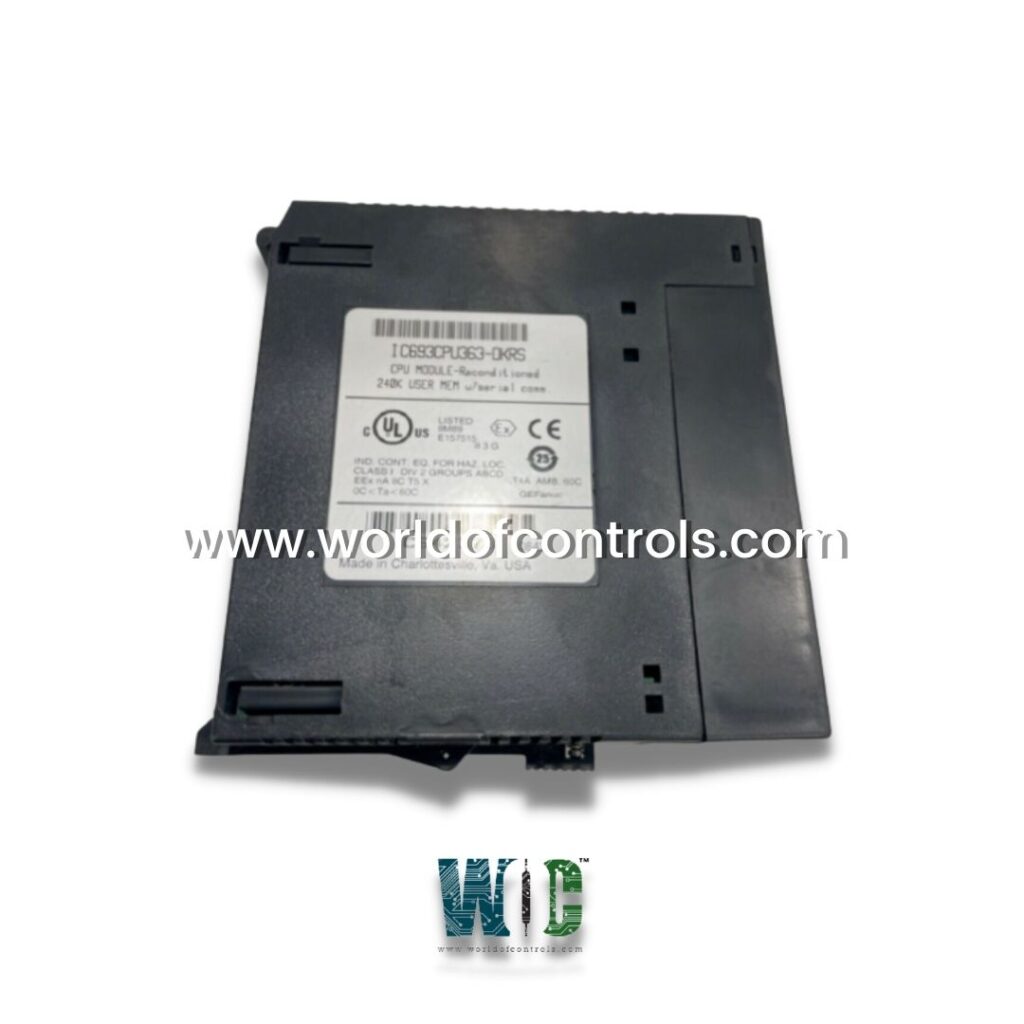

The IC693CPU363 is a single-slot CPU module developed by GE Fanuc as part of their Series 90-30 programmable controller line. Designed to deliver both processing power and space efficiency, it integrates a CPU, power supply, and communication interfaces into one compact unit.
Here are some of its core specifications:
-
Processor speed: 25 MHz
-
User memory: 240KB (expandable)
-
Built-in ports: RS-232, SNP, and Ethernet (10Base-T)
-
Programmed using: Logicmaster 90 or Proficy Machine Edition
-
Compatible with: I/O modules and expansion racks from the Series 90-30 line
With these features, the IC693CPU363 is aimed at users who want a compact but capable PLC for mid-range applications.
Key Features and Benefits
One of the biggest selling points of the Single Slot CPU Module is its all-in-one design. Instead of requiring multiple modules for basic CPU, power, and communication functions, it packs them into a single slot—saving rack space and simplifying installations.
Some standout features include:
-
Built-in Ethernet Port: Enables remote programming, diagnostics, and data exchange, essential for modern networked environments.
-
Flexible Programming Options: Compatible with both older (Logicmaster 90) and newer (Proficy Machine Edition) programming tools.
-
Modular Expansion: Supports up to 8 racks and over 2,000 I/O points with additional modules.
-
Durability: Engineered for harsh industrial conditions with high operational reliability.
For users with limited panel space or looking for a plug-and-play PLC solution, this module offers a strong value proposition.
Use Cases and Applications
The Single Slot CPU Module is best suited for small to medium-scale automation systems. Common industries and applications include:
-
Manufacturing lines: For controlling motors, sensors, actuators, and simple robotic tasks.
-
Food processing facilities: Where hygiene and space constraints demand compact, sealed equipment.
-
Packaging systems: To manage conveyor belts, timers, and sensors.
-
Material handling: In warehouses or production environments needing reliable, low-latency control.
Its Ethernet support makes it especially useful for SCADA integration and remote monitoring, adding to its versatility.
Limitations to Consider
Despite its strengths, the Single Slot CPU Module does have some limitations that may be deal-breakers depending on your project.
-
Limited Memory: While sufficient for most mid-tier applications, its 240KB user memory can be restrictive for large programs.
-
Legacy Programming Tools: Logicmaster 90 is outdated, and although Proficy Machine Edition offers modern capabilities, it may not be ideal for teams wanting to use open-source or cross-platform tools.
-
No USB or High-Speed Communication: Lacks support for newer communication standards like USB or gigabit Ethernet.
-
Obsolescence Risk: As newer models and PLC platforms emerge, long-term support and parts availability might become an issue.
These limitations mean that while it’s great for existing Series 90-30 systems or small-scale deployments, it may not be future-proof for large or modern installations.
Comparison with Other Modules
Compared to newer PLC modules in the GE PACSystems RX3i or Allen-Bradley CompactLogix series, the IC693CPU363 is less powerful and has fewer modern features. However, it excels in environments where:
-
Cost is a key constraint
-
Rack space is limited
-
Integration with existing 90-30 systems is necessary
It’s a classic example of a value-oriented controller that balances performance with affordability.
Is It the Right Choice for You?
To decide whether the Single Slot CPU Module is right for your application, consider the following:
-
Project Size: For small to mid-size projects, this module is ideal. For large-scale automation, look elsewhere.
-
Budget: If you’re cost-conscious but still want reliable performance, it’s a great pick.
-
Legacy Integration: If you already use GE Fanuc equipment, it’s an easy and compatible upgrade.
-
Networking Needs: Basic Ethernet support is available, but advanced industrial networking may require additional modules or newer hardware.
It’s best suited for OEMs, maintenance engineers, and facilities already invested in GE Fanuc technology.
Conclusion
The Single Slot CPU Module is a solid performer in the world of compact PLCs. With its integrated design, decent communication features, and compatibility with legacy systems, it offers great value for small and medium industrial automation tasks.
However, as with any piece of automation hardware, you should assess your current system requirements, future scalability needs, and integration plans before making a final decision.
So, is the IC693CPU363 the right CPU module for you? If your project demands reliability, compactness, and ease of deployment—and doesn’t require cutting-edge specs—the answer may very well be yes.
